-LUBIC FACTORY-
Frame Set of STANDARD Series
ATX Compatible Assembly Kit
LUBIC-SATX

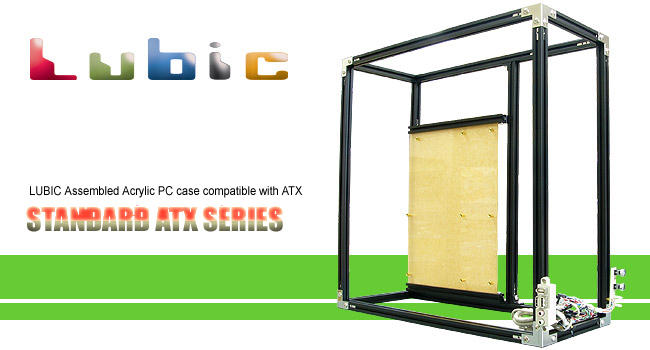

ATX Compatible Frame Case


A new release of LUBIC-SATX series of PC Case Assembly Kit for standard motherboard compatible with ATX . As motherboard fixing panels, power supply switch and multimedia port are attached in addition to LUBIC aluminum frames, you can build the PC case with only these parts. Furthermore, an easy-to-understand instruction manual is included so that even the beginners can build it by themselves without anxiety.

Enables a various types of customization with using a wide range of parts variation
A various transformation is performed depending on the manufacturers in the current PC D.I.Y. field while LUBIC offers a wide range of customization according to the parts used. This is one of the advantages of LUBIC that allows you to purchase an additional parts for modifying your assembly configuration.

Provides a high extendability, cooling capability and quietness
As an unique aspect of LUBIC, it has a high extendability and high capability in maintaining the coolness. When using as a frame case, it prevents the heat from being remained in the case. As it is structurally controlled to prevent heat to be remained in the case, no extra airflow function is required and this enables the noise level generated from the fans to keep to the minimum. Also, you can always keep the PC status neatly since it is easy to conduct cleaning or maintenance.

Enjoy more with stylish design panels
By only mounting a design exterior panels on the STANDARD-ATX series, you can produce the unprecedented PC case with brilliant colors instead of a transparent acrylic case. Also, this does NOT require an additional purchase even when the new design panel is released in the future.
　
Product Name LUBIC Standard ATX Series
LUBIC-STANDARD-ATX-BL 4571139321015
LUBIC-STANDARD-ATX-GN 4571139321022
LUBIC-STANDARD-ATX-BK 4571139321039
LUBIC-STANDARD-ATX-GD 4571139321046
LUBIC-STANDARD-ATX-RD 4571139321053
LUBIC-STANDARD-ATX-SV 4571139321060
Description LUBIC ATXX Compatible PC Case Assembly Frame Kit
Specification ATX
Supported Power Supply Compatible with ATX Power Supply/ Uninstalled
Unit Size・Weight Unit Size：204(W)×486(H)×490(D)mm　Weight：7327g (Upon assembly)
Material Aluminum (Alumite finish on each color)
Package Contents LUBIC448mm Frame x 9 sheets
LUBIC256mm Frame x 2 sheets
192mm Frame x 4 sheets
1S x 20 pcs
3S x 80 pcs
PSCM4 x 20 pcs
SC6M4 Screws x 40 pcs
SC8M4 Screws x 40 pcs
SC10M3 Screws x 40 pcs
STABD-FC x 8 pcs
STAND-HS x 16 pcs
CAP x 4 sheets
CAP-EX x 4 pcs
LP x 16 pcs
USB1394 x 1 unit
SW x 1 unit
SLWR x 1 sheet
ACMB-AI x 1 sheet
SC16H x 4 pcs
Notes ●No assembly parts such as power supply or others are attached to this product.
●A cross slot screwdriver is required for assembling this product.
