February 2005
New Product Information
　A New Release of "LUBIC BasicNE" series, a basic assembly kit enabling various assembly according to your purposes

KAIREN Co., Ltd. will start the launch of "Lubic BasicNE", a kit for building PC parts inspection board with aluminum frames, from mid-February 2005. This product can be used in the wide range from PC shop support to the power user who replaces the PC parts frequently.
　■"Lubic BasicNE" Main Feature
１. Easy Replacement
A replacement of PC parts can be conducted easily as assembly parts are available without being fixed. Also, replacement of motherboard can be conducted by adding an extra acrylic panels.

２. Easy Assembly
An easy assembly is enabled by using the cross slot screwdriver and the attached nut spinner. The "illustrated manual" is attached in order that even the beginner can conduct assembly without anxiety.

３. Various Assembly Patterns
More than 3 ways of assembly such as "Standard", "Removable" and "Dual-Type" are available depending on the frame combination. By performing assembly according to your purposes, it responds to the purposes of various users.


Standard

Removable

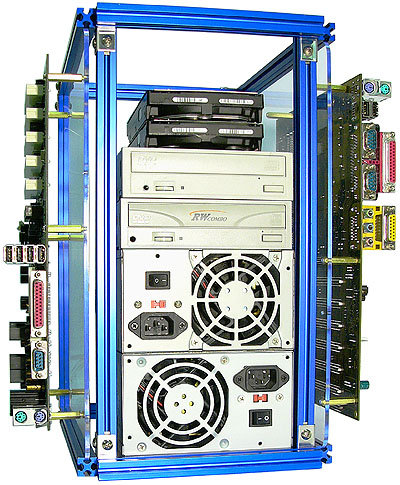

Dual-Type
Fix 4 corners of acrylic panels with frames. This is an example of home-use assembly considering of portability.   This is an example of assembly considering the case of using PC parts inspection board with slidable motherboard fixing panel.   This is an example of Dual-motherboard assembly with fixing 2 sheets of acrylic panels on the motherboard.
* SWR2 (separately sold) is required when using 2 sheets of motherboard.

４. Enjoy extendability with Options
By focusing on the extendability which is one of enjoyable feature LUBIC, we made efforts on the interaction with various options. The original case can be created with "Lubic BasicNE".


Back Panel

Drive Bay

Bottom Parts
This is used for fixing expanded cards.   This enables to fix the drive easily.   Casters can be attached on the bottom parts of the case.


  ■Product Description
Product Name　　：Lubic BasicNE
Frame Color　：Blue / Green/ Black/ Gold/ Red/ Silver
Model Number
Frame Color
Price
Released Date
JAN Code
Lubic BasicNE-BL
Blue Frame
Open
February 2005
4571139325914
Lubic BasicNE-GN
Green Frame
Open
February 2005
4571139325921
Lubic BasicNE-BK
Black Frame
Open
February 2005
4571139325938
Lubic BasicNE-GD
Gold Frame
Open
February 2005
4571139325945
Lubic BasicNE-RD
Red Frame
Open
February 2005
4571139325952
Lubic BasicNE-SV
Silver Frame
Open
February 2005
4571139325969

[Package Contents]
+ 192mm Lubic Frame x4
+ 256mm Lubic Frame x4
+ 384mm Lubic Frame x4 + Assembly Screw
+ Motherboard Fixing Pane lx2
+ Nut Spinner
+ Power Switch
+ Antistatic Sheet
+ Japanese Instruction Manual

[Compatible Sepcification]
+ ATX
+ microATX
+ FlexATX

[Category]
+ Self-produced Simplified Assembly Case

[Dimension]
+ 288mm（D）/384mm（W）/224mm（H）
［Notes］
* Although Lubic frames are created with close attention, an unnoticeable scratch may be found only occasionally.
We do NOT warranty for the scratches unless it degrades the functionality.
* The colors displayed above may be different from actual colors depending on the using browser or setting.
* No assembly parts are included in this product.


【Contact below for product related inquiries】
KAIREN Co., Ltd.
Hoei BLDG. 11-1, Miyuki-cho, Tokorozawa-shi, Saitama Pref. Zip 359-1115
TEL：81-4-2929-6296　FAX：81-4-2929-6297　
