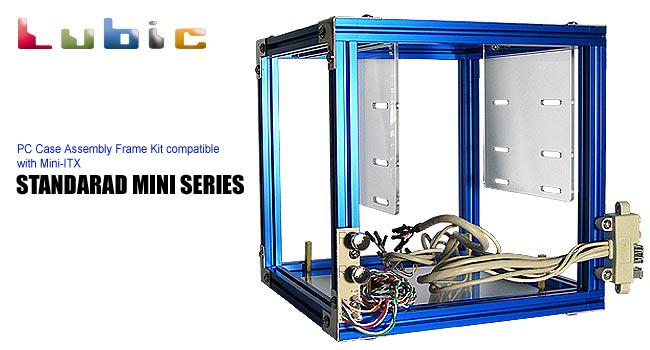

Frame Set of STANDARD Series
Mini-ITX Compatible Assembly Kit
LUBIC-SMINI
Mini-ITX Compatible Frame Case

A new release of LUBIC-SMINI series of Cubic PC Case Assembly Kit for mini motherboard compatible with Mini-ITX. As drive bay panels, motherboard fixing panels, power supply switch and multimedia port are attached in addition to LUBIC aluminum frames, you can build the PC case with only these parts. Furthermore, an easy-to-understand instruction manual is included so that even the beginners can build it by themselves without anxiety. This is a cubic case compatible with Mini-ITX that is expected to become as a major next generation specification along with the PC minituarization.

Enables a various types of customization with using a wide range of parts variation
A various transformation is performed depending on the manufacturers on the current Mini-ITX standard motherboard while LUBIC offers a wide range of customization according to the parts used. This is one of the advantages of LUBIC that allows you to purchase an additional parts for modifying your assembly configuration.

Provides a high extendability, cooling capability and quietness
This can store the largest amount of drives other than any other cubic cases of this size. Also, it enables you to customize with your own parts according to your purposes as both generally used 3.5 inch and 5 inch bays are installable. Furthermore, as it is of exposure type of case, it has a maximum level of cooling capability which enables an easy activation without using fans with generating a lesser noise.

Enjoy more with stylish design panels
By only mounting a design exterior panels on the STANDARD-MINI series, you can create a stylish design case like LUBIC PILOTIS. Also, this does NOT require an additional purchase even when the new design panel is released in the future.

Product Name	LUBIC Standard Mini Series
LUBIC-STANDARD-MINI-BL	4571139321442
LUBIC-STANDARD-MINI-GN	4571139321459
LUBIC-STANDARD-MINI-BK	4571139321466
LUBIC-STANDARD-MINI-GD	4571139321473
LUBIC-STANDARD-MINI-RD	4571139321480
LUBIC-STANDARD-MINI-SV	4571139321497
Description	LUBIC Mini-ITX Compatible PC Case Assembly Frame Kit
Specification	Mini-ITX
Supported Power Supply	Power supply is NOT attached
Unit Size・Weight	Unit Size：224(W)×224(H)×224(D)mm　Weight：1600g (Upon assembly)
Material	Aluminum (Alumite finish on each color)
Package Contents	LUBIC192mm Frame x 9 sheets LUBIC224mm Frame x 4 sheets SW x 1 pc USB1394 x 1 pc CAP-EX x 8 pcs LP x 8 pcs ACP-FA x 1 sheet ACDS21 x 1 set PU x 1 sheet 1S x 40 pcs 3S x 20 pcs SC6M3 Screws x 20 pcs SC10M3 Screws x 20 pcs SC6M4 Screws x 40 pcs SC8M4 Screws x 20 pcs PSCM4 x 20 pcs STAND-HS x 8 pcs MSC27M3M4 x 4 pcs MSC27M3M4 x 4 pcs Hexagonal Wrench Nut Spinner
Notes	●No assembly parts such as power supply or others are attached to this product. ●A cross slot screwdriver and 6mm nut spinner are required for assembling this product.
